Group T6C
12 questions from the official pool, drawn by ID — exact wording, never retyped.
T6C01
What is an electrical diagram using standard component symbols called?
A
Connection chart
B
Instrumentation system
C
Schematic
D
Flow chart
T6C02

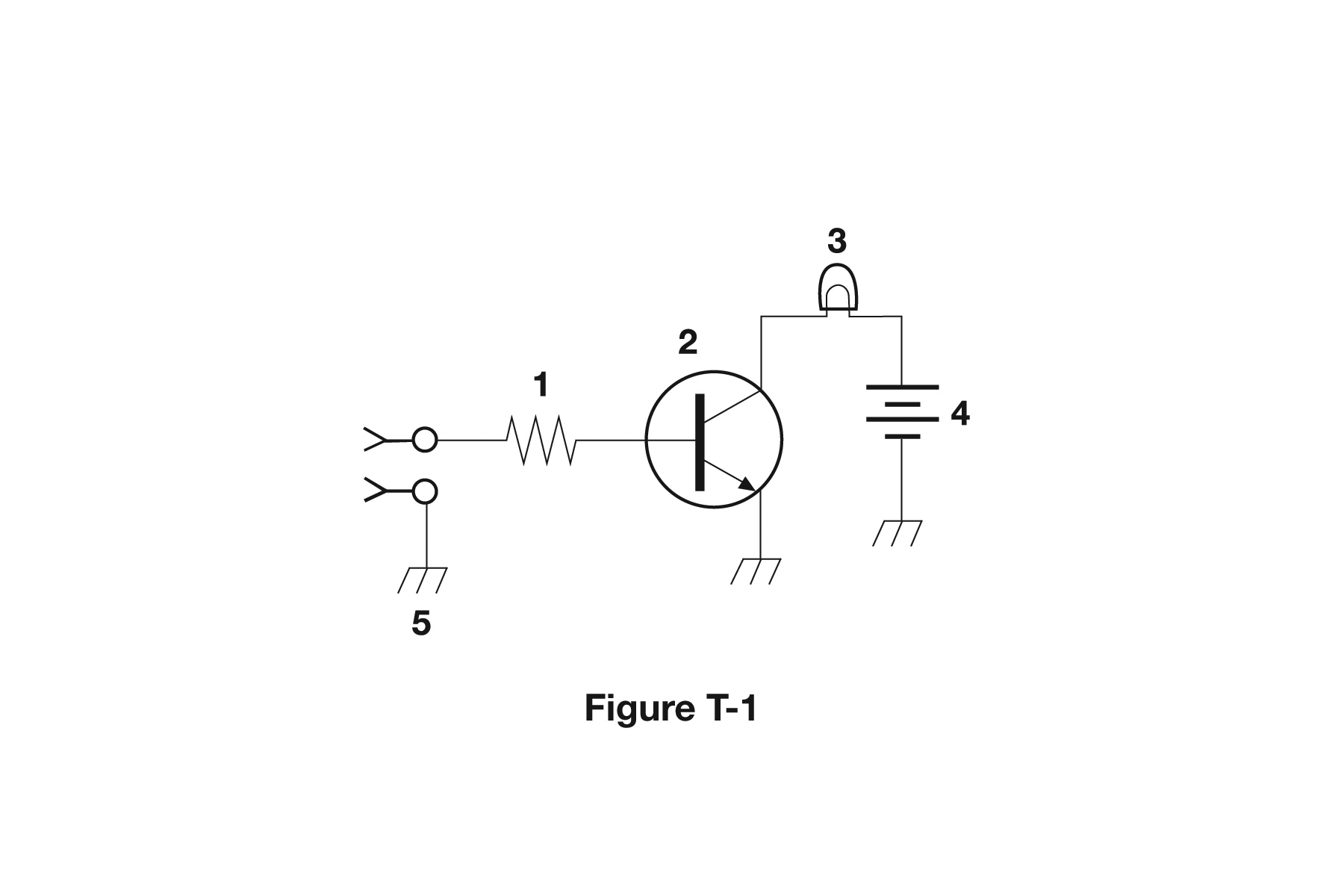

What is component 1 in figure T-1?
Figure T-1 — tap image to enlarge
Close
A
Resistor
B
Transistor
C
Battery
D
Connector
T6C03
What is component 2 in figure T-1?
Figure T-1 — tap image to enlarge
Close
A
Resistor
B
Transistor
C
Indicator lamp
D
Connector
T6C04
What is component 3 in figure T-1?
Figure T-1 — tap image to enlarge
Close
A
Resistor
B
Transistor
C
Lamp
D
Ground symbol
T6C05
What is component 4 in figure T-1?
Figure T-1 — tap image to enlarge
Close
A
Resistor
B
Transistor
C
Ground symbol
D
Battery
T6C06

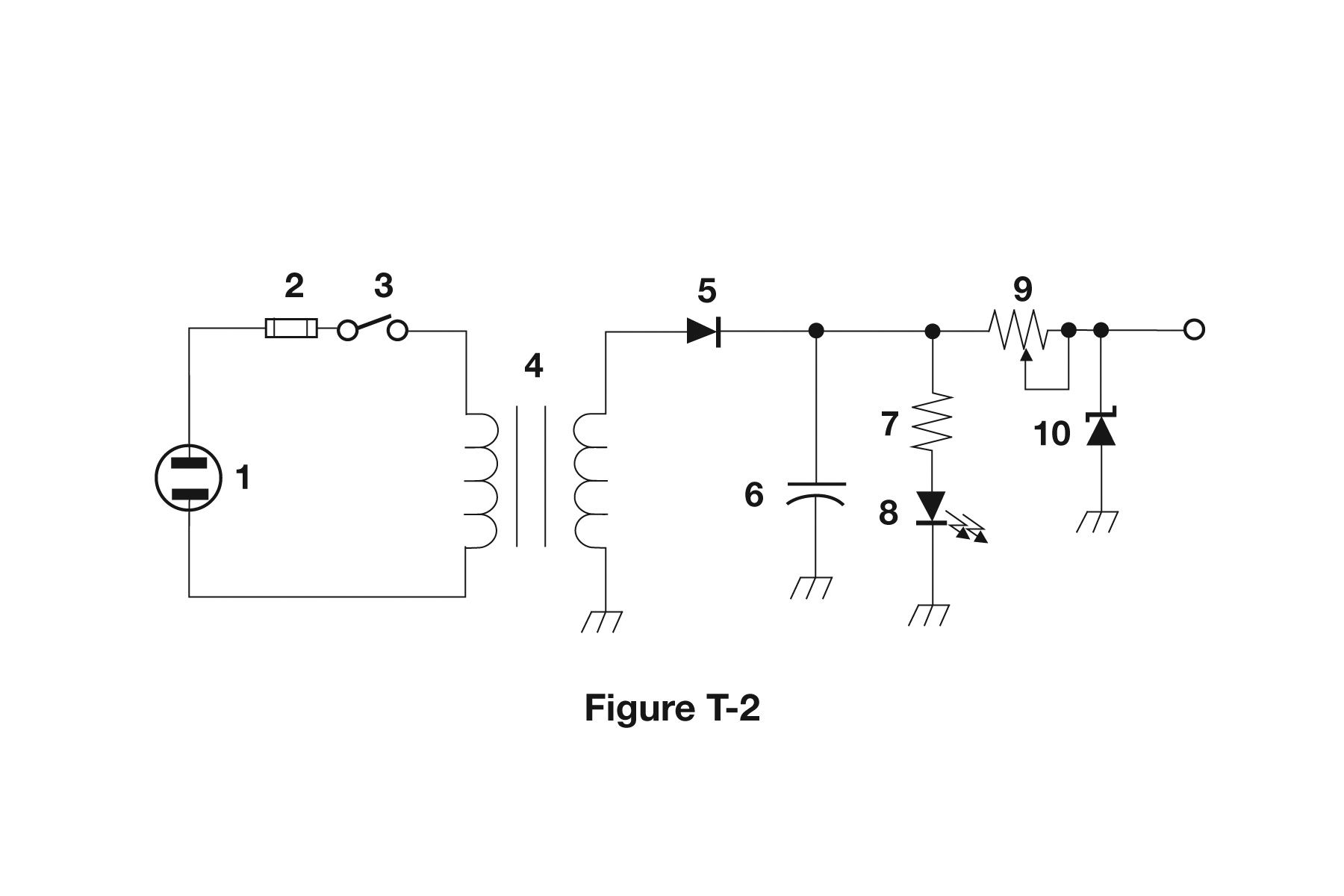

What is component 6 in figure T-2?
Figure T-2 — tap image to enlarge
Close
A
Resistor
B
Capacitor
C
Regulator IC
D
Transistor
T6C07
What is component 8 in figure T-2?
Figure T-2 — tap image to enlarge
Close
A
Resistor
B
Inductor
C
Regulator IC
D
Light emitting diode
T6C08
What is component 9 in figure T-2?
Figure T-2 — tap image to enlarge
Close
A
Variable capacitor
B
Variable inductor
C
Variable resistor
D
Variable transformer
T6C09
What is component 4 in figure T-2?
Figure T-2 — tap image to enlarge
Close
A
Variable inductor
B
Double-pole switch
C
Potentiometer
D
Transformer
T6C10

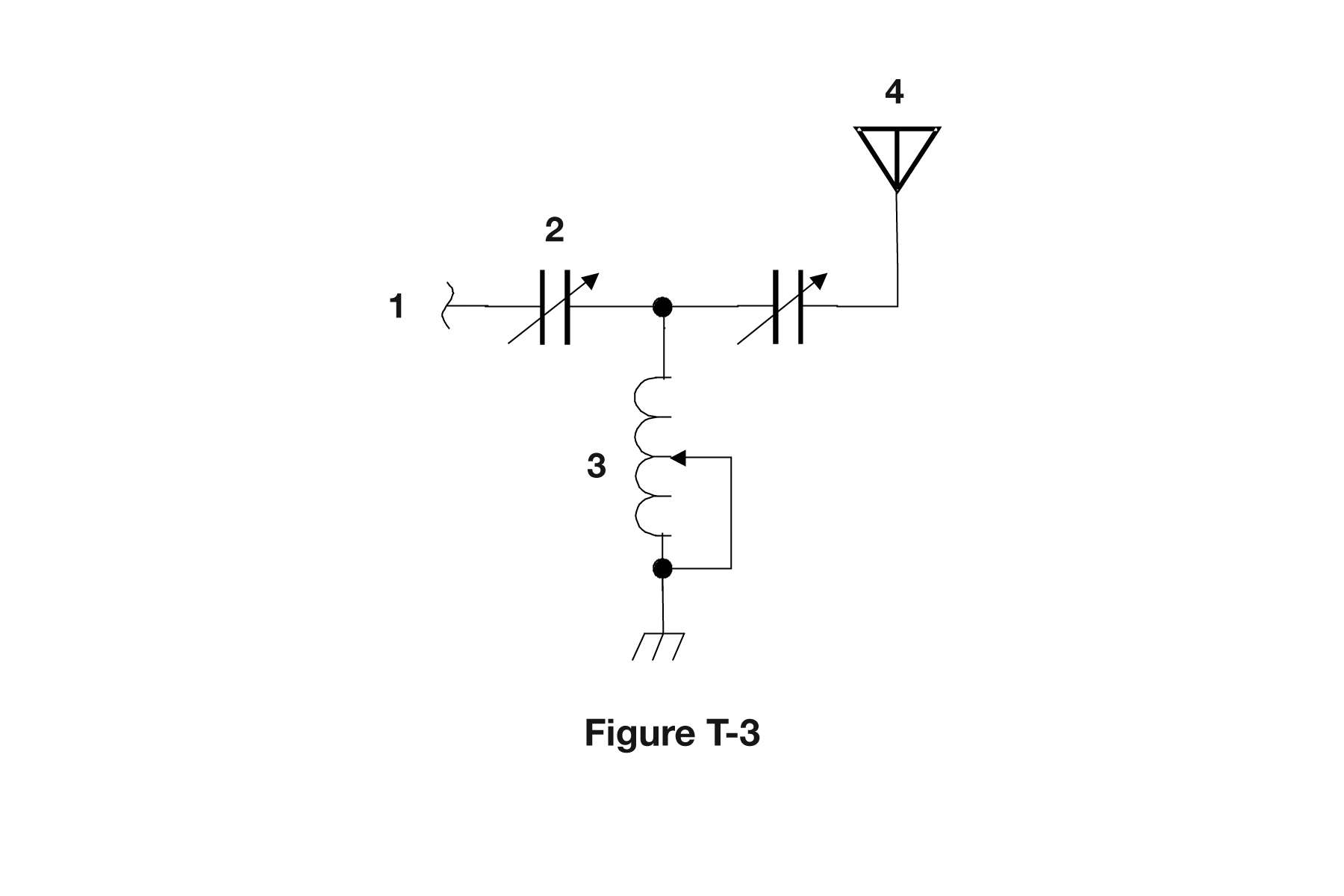

What is component 3 in figure T-3?
Figure T-3 — tap image to enlarge
Close
A
Connector
B
Meter
C
Variable capacitor
D
Variable inductor
T6C11
What is component 4 in figure T-3?
Figure T-3 — tap image to enlarge
Close
A
Antenna
B
Transmitter
C
Dummy load
D
Ground
T6C12
Which of the following is accurately represented in electrical schematics?
A
Wire lengths
B
Physical appearance of components
C
Component connections
D
All these choices are correct
